jive5ab Data Transfer Modes explained

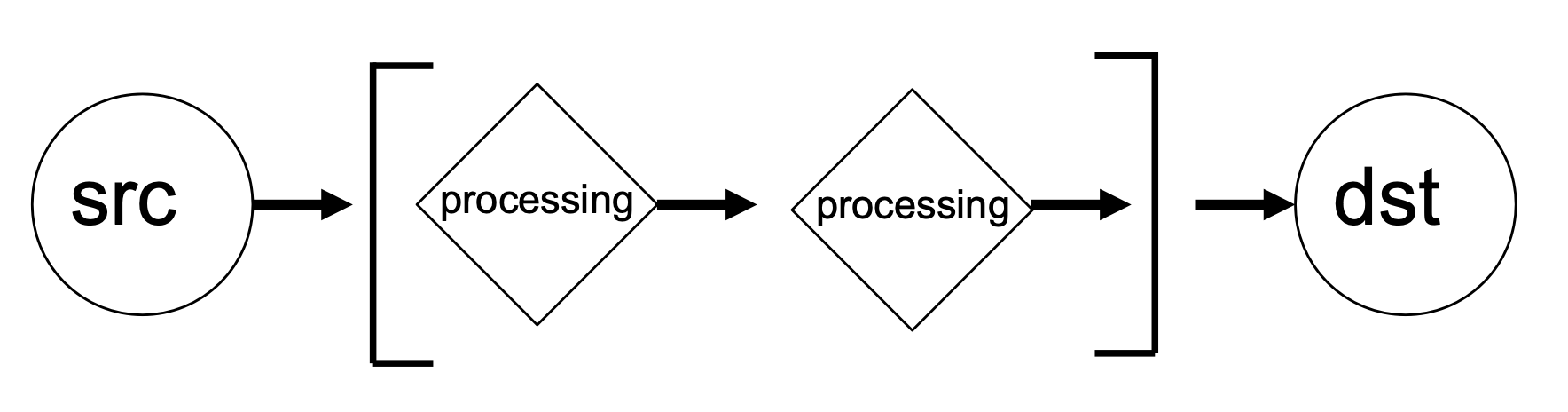

In jive5ab’s internal architecture, a data transfer is a processing chain. Such an entity has a source, whence data comes from, and a destination, where the data leaves the system. In between these steps may be an arbitrary number of processing steps, processing the data as to the user’s request. Graphically this can be represented as follows:

Each element in the processing chain is a reusable building block such that it can be used in different transfers. An example of src would be file, dst could be net, to form the file2net transfer. The same src file can also be used to form e.g. the file2disk transfer.

An example of a processing step is channel dropping. This allows the compression of the data stream by throwing away a set of bits out of each 64 bit word. The channel dropping step can be inserted into basically any transfer; in2net (used in real-time e-VLBI) is one example but it would work equally well in a file2disk.

The number of combinations that can be made with the existing set of sources, destinations and processing steps is already too large to make plots of all possibilities, refer to the list of commands further on: all transfer modes follow the naming scheme src2dest.

A list of current data transfer end points and/or data processing chains is found below, it may serve as guide of what to expect. Some transfer end points are named the same wether or not they are data source or data destination. Their position in the transfer name defines the actual nature of them.

in – read from the I/O board into the Streamstor card (formatter) out – write from Streamstor card to the I/O board (correlator) disk – read from or write to the Streamstor disk module

net – read from or write to the network; allow Mark5 to send/receive data to/from other machines

file – read from or write to a file on the filesystem of the host computer

jive5ab adds a number of non-standard transport end points besides these standard ones:

fill – produce a user defined fill pattern

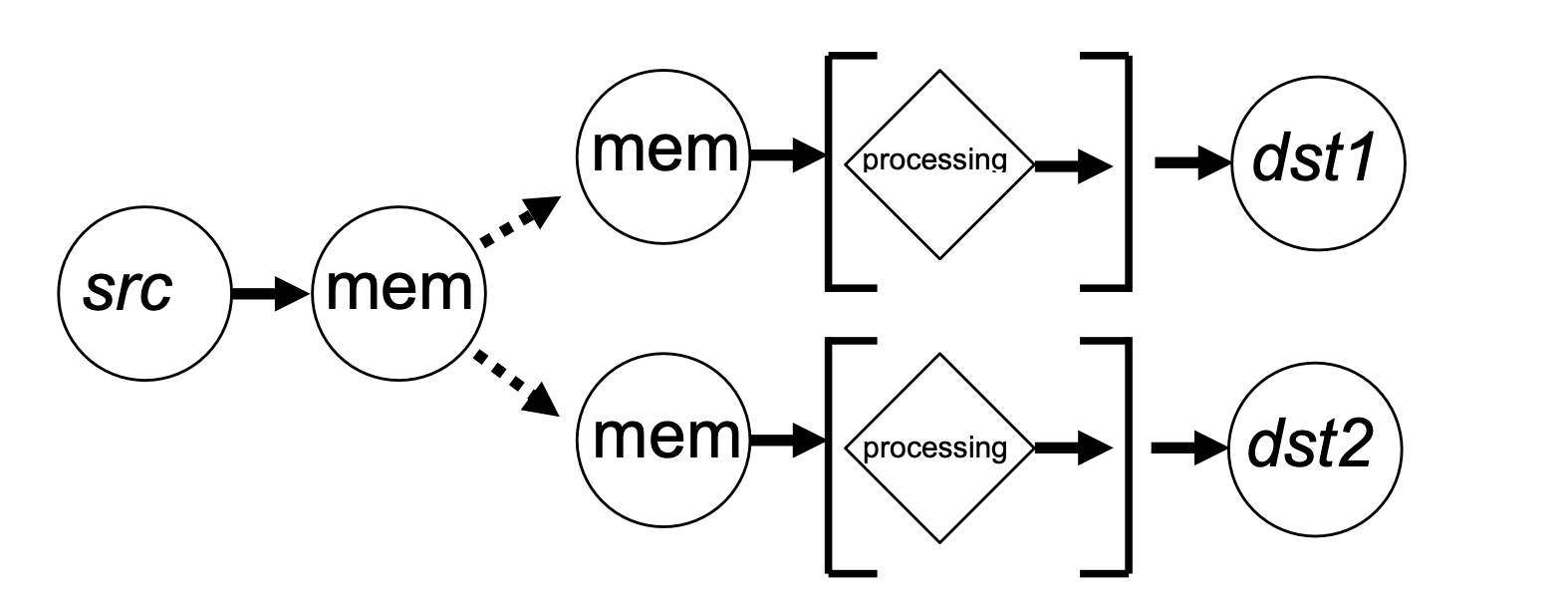

mem – read or write to a circular buffer in the Mark5’s main memory. It is worthwhile to note that this endpoint supports multiple readers. The data from the circular buffer can be independently read and processed by multiple transfers, provided enough resources to sustain the transfers are available. E.g. the data from this buffer could be written to a file and at the same time, independently, be sent to the network. This is graphically depicted below.

spill, spif, spin, spid, splet – these data sources combine a data source and corner turner processing step immediately following the receipt of data, producing legacy VDIF data (proper VDIF with EDV#0 for jive5ab >= 3.0.0). The following transfers read and split respectively from: spill = fill pattern (split fill = spill), spif = regular file from disk (split file = spif), spin = I/O board (split input = spin), spid = Streamstor disks (split disk = spid) and splet = network (split net = splet). Currently the only supported destinations are file and net.

fork - jive5ab exploits features offered by the Conduant Streamstor system. One of these is forking, or rather, duplicating of the data. The Streamstor Card has three I/O ports, connected to respectively the MIT Haystack I/O board, the disk modules and the PCI bus. The Streamstor Card can duplicate the data received on one of the ports to both of the remaining ports. Typically fork is used to store data to the disk modules and do something else in parallel, e.g. correlate (net2fork = net2disk + net2out) or send to network (in2fork = in2disk(aka record) + in2net).
